How to Choose a Laboratory Water Purification System

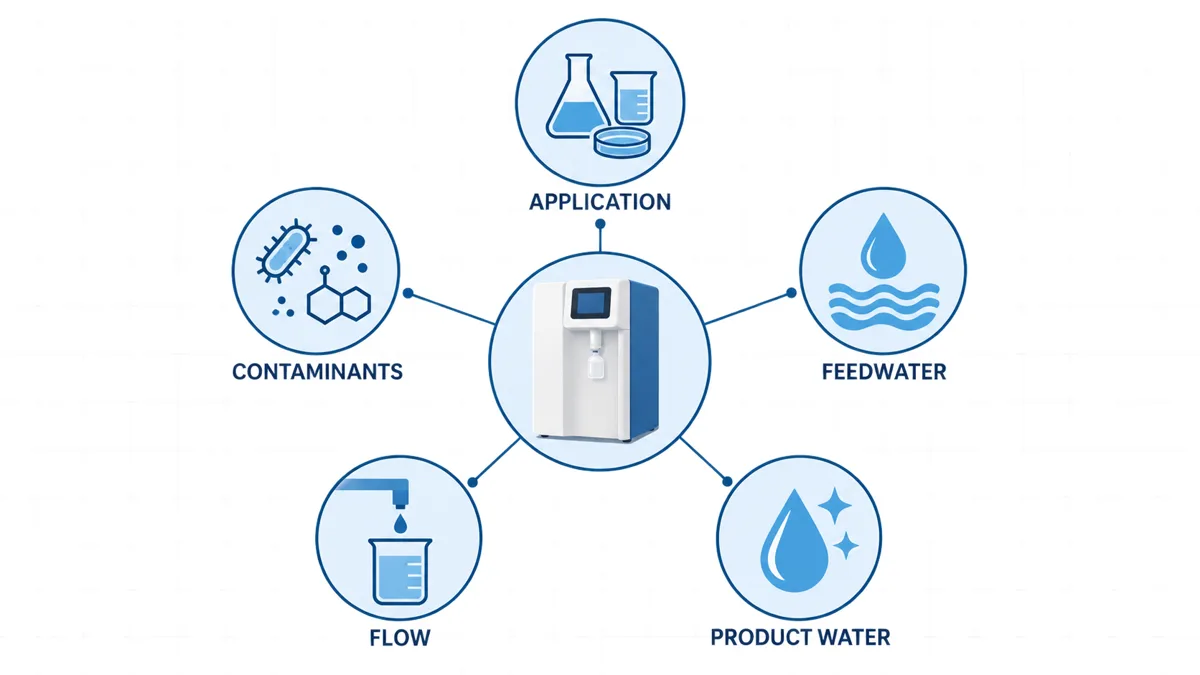

Choosing a laboratory pure or ultrapure water system comes down to five questions: What will the water be used for? What is the feedwater? What product-water quality is required? What flow is needed? Which contaminants must be controlled? Answer these questions before choosing RO, DI, EDI, UV, ultrafiltration or final filtration. A label such as “Type I,” “ultrapure water” or “18.2 MΩ·cm” is not enough on its own because different laboratory applications are affected by different contaminants.

Step 1: Should My Lab Use Type I, Type II or Type III Water?

Water-quality requirements vary widely across laboratory applications. Water used for an initial glassware wash does not need to meet the same requirements as water used for LC-MS or molecular biology. Conversely, a resistivity of 18.2 MΩ·cm does not by itself prove that the water is suitable for cell culture or nuclease-sensitive work.

This table shows common selection directions, not universal rules. Methods with similar names can still have different requirements, so the final specification should come from the actual method and instrument documentation.

Type I, Type II and Type III are often used as quick categories in laboratory water discussions:

Start with the application, then confirm the measurable water-quality parameters. Type I, Type II and Type III are not fixed answers independent of the method, and different standards do not always define categories in exactly the same way.

What Water Grade Does a General Chemistry Lab Need?

A general chemistry laboratory does not automatically need Type I water. Routine preparation, glassware washing and general inorganic work tolerate far more ionic and organic background than trace or instrument-sensitive work, so the starting question is never “the highest grade” but which contaminants — ions, organics, particles or microbes — actually affect your methods.

Layer the decision by task: routine reagent preparation and washing usually sit at Type III or Type II; general inorganic analysis typically calls for Type II; move toward Type I only where a method, an instrument manual or a quality programme demands it — for example trace-level work or sensitive instrumentation such as HPLC, LC-MS or ICP-MS.

Note the vocabulary as well: “Type I/II/III” is industry shorthand (ASTM D1193, for example, defines Type I–IV reagent water), while ISO 3696:1987 defines Grade 1, 2 and 3 water and applies to inorganic chemical analysis, and CLSI GP40 validates water against its intended purpose rather than assigning a universal grade. These schemes are related but not interchangeable — confirm the final requirement against your analytical methods, instrument manuals and laboratory quality programme before choosing a system.

Step 2: Confirm the Feedwater Conditions

A laboratory water system may receive tap water, softened or filtered water, RO water, or water from an existing central purification system. Different feedwater conditions require different treatment steps.

Before selecting a system, confirm at least the following:

• Feedwater source: tap water, well water, RO water or DI water;
• Pressure and temperature: whether they remain within the system's permitted range;
• Hardness and TDS: whether scaling or excessive loading of RO and ion-exchange stages is likely;
• Chlorine or other oxidants: whether they could affect membranes or downstream treatment media;
• Turbidity and particles: whether additional prefiltration is needed;
• Microbial condition: whether it could increase contamination risk in tanks and piping.

A system fed directly with tap water normally has to perform more pretreatment. If a laboratory already has stable RO or DI water, the point-of-use system can focus more closely on final polishing.

Two laboratories that both need Type I ultrapure water may therefore require different system configurations. The difference may come from the feedwater rather than the required product water.

Step 3: Define the Product-Water Requirements

Do not specify the output simply as “pure water” or “ultrapure water.” Where possible, define measurable parameters.

One point deserves special attention: 18.2 MΩ·cm mainly indicates very low ionic contamination. It does not prove that the water is free of organics, microorganisms, endotoxins, particles or nucleases.

Step 4: Define the Flow and Dispensing Requirements

This does not require a complicated calculation, but the actual pattern of use must be clear.

Confirm:

• the required production rate in L/h;
• whether water is used continuously or withdrawn in short, concentrated periods;
• the largest single withdrawal;
• whether a storage tank is needed;
• the number of dispensing points and whether they may operate at the same time;
• whether an instrument has a minimum inlet flow or pressure requirement.

For example, two laboratories may each use 50 L per day. One draws small volumes throughout the day, while the other needs 30 L in a short period each morning. Their daily volumes are the same, but their storage and dispensing arrangements may differ.

The purpose of defining flow is to match the system to the real working pattern, not simply to buy the largest nominal capacity. An undersized system can cause waiting, while excessive capacity or storage can increase stagnation and maintenance.

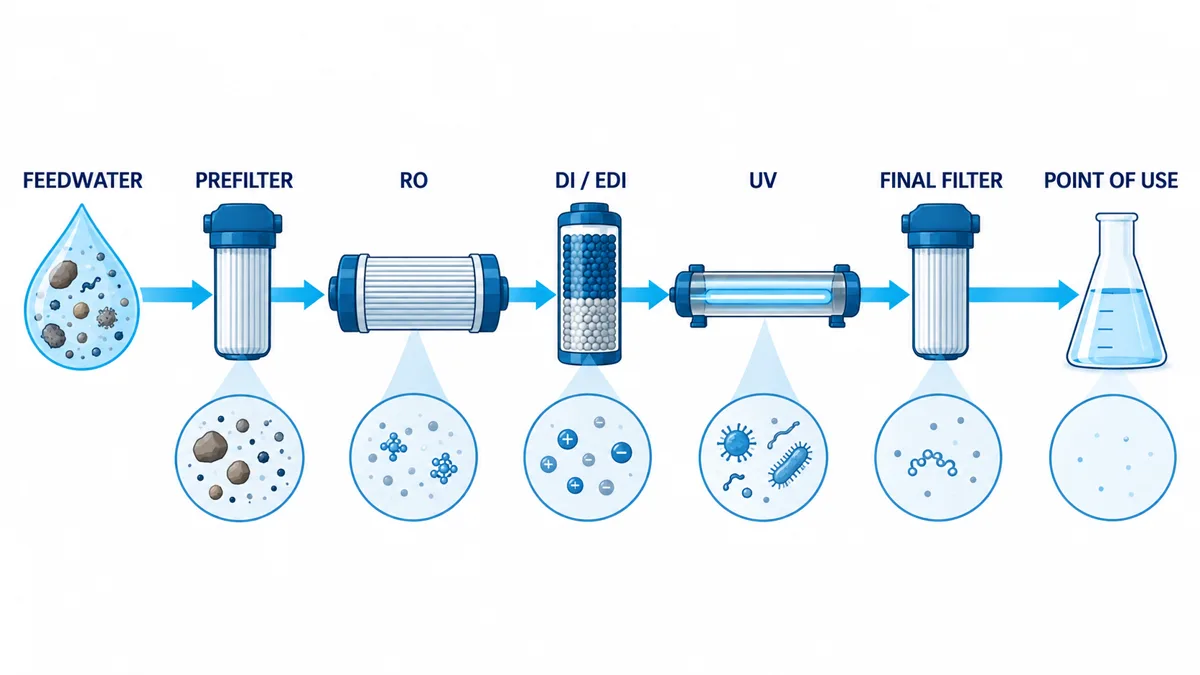

Step 5: Understand What Each Purification Technology Does

Laboratory water systems commonly combine several technologies because each stage controls different contaminants.

This is why there is no universal answer to “Which is better: RO, DI or distilled water?” The processes address different problems. See distilled, deionized and RO water for laboratory use for a direct comparison.

Can RO Water Be Used Directly in the Lab?

It depends on the application. RO water can be suitable for many glassware-washing, equipment-feed and further-purification applications, but it does not normally replace Type I ultrapure water for sensitive analysis. HPLC, LC-MS, ICP-MS and molecular-biology work may require additional control of ions, organics, particles, microorganisms or nucleases.

If a laboratory already has a stable RO supply, it can serve as feedwater for an ultrapure-water system, allowing the downstream stages to focus on ionic and application-specific polishing. Final suitability should still be determined from the experiment and instrument requirements.

Common Treatment Combinations for Different Uses

The following examples help explain system structure. They do not mean that every laboratory must use exactly the same configuration.

More treatment stages are not automatically better. Every additional component adds consumables, maintenance and a surface that must be controlled. A suitable system uses the necessary stages to meet the actual requirement at the point of use.

Can Laboratory Pure and Ultrapure Water Be Stored?

DI and ultrapure water do not have one universal shelf life for every application. During storage, water may absorb carbon dioxide from the air and may also be affected by the container, microorganisms and repeated opening.

Use these simple principles:

• Use ultrapure water for sensitive analysis as soon as practical after dispensing;
• Follow the labeled expiration date and storage conditions for commercially packaged reagent water;
• Set an internal use period for laboratory-stored DI water according to its application;
• Use a clean, closed and clearly labeled container, and never return poured water to the original container;
• Do not use the water for critical work if the internal use period has passed, storage history is unknown or required quality results fail.

Water used for general washing and water used for LC-MS, ICP-MS or cell culture do not have the same tolerance for storage-related change. Instead of asking how many days all DI water can be stored, first ask what the water will be used for and which parameters must remain within specification.

Why Do Laboratory Water Systems With the Same Flow Rate Have Different Prices?

Two systems with similar production rates can still have very different prices. The difference usually comes from the treatment target and system configuration rather than appearance.

A request that says only “20 L/h ultrapure-water system” is therefore incomplete. It should also state the feedwater source, target water quality, main applications, dispensing pattern and parameters that must be monitored. Prices become comparable only when the input requirements are comparable.

What Information Should Be Prepared Before Selection?

Before selecting a laboratory water system, prepare the following information:

1. The experiments, instruments and washing steps that will use the water;
2. The feedwater source and basic water quality;
3. The target resistivity or conductivity;
4. Any TOC, microbial, endotoxin, particle or nuclease requirements;
5. The required production rate and largest single withdrawal;
6. Whether a tank and multiple dispensing points are needed;
7. Required online monitoring, alarms or data recording;
8. Responsibility for consumables, sanitization and routine maintenance.

These eight items describe what the laboratory actually needs and reduce the risk of choosing a system based only on “Type I,” “ultrapure water” or a single numerical specification.

How Can You Verify a Laboratory Water System Supplier?

“Trusted” is a claim, not evidence. Before shortlisting, send every supplier the same inputs from the checklist above and ask each one to state the following in writing, so that proposals can be audited rather than taken on trust:

• Application and feed-water fit: the proposal names your intended use, feed-water conditions and target water quality, and explains how the configuration addresses them.
• Capacity and use pattern: daily volume, peak dispensing, storage and point-of-use demand are addressed separately, not collapsed into a single flow figure.
• Monitoring and acceptance: the parameters to monitor, the acceptance methods, and which test or validation documents are supplied — and under what assumptions.
• Consumables and maintenance: a consumables and spare-parts list, replacement triggers, and a clear split of maintenance responsibilities and training.
• Service and quotation scope: what is included and excluded, the service process, and the documents delivered at handover.
• Comparability: only when every bidder answers the same inputs and scope can proposals and prices be compared fairly.

Written answers to these six points are far easier to verify than any label of being “trusted” — and they make deviations and exclusions visible before you commit.

Technical note: This article provides general selection guidance for laboratory pure and ultrapure water. It is not a substitute for the governing method, instrument manual or laboratory quality procedure, and it does not describe specific brands or products.
