How Often Should You Replace a UV Lamp in a Water Treatment System?

Low-pressure UV disinfection commonly uses output near 254 nm to damage microbial DNA and RNA, preventing target organisms from reproducing. The more precise engineering term is microbial inactivation, not absolute sterilization.

Three problems can reduce performance while a lamp still appears to be on:

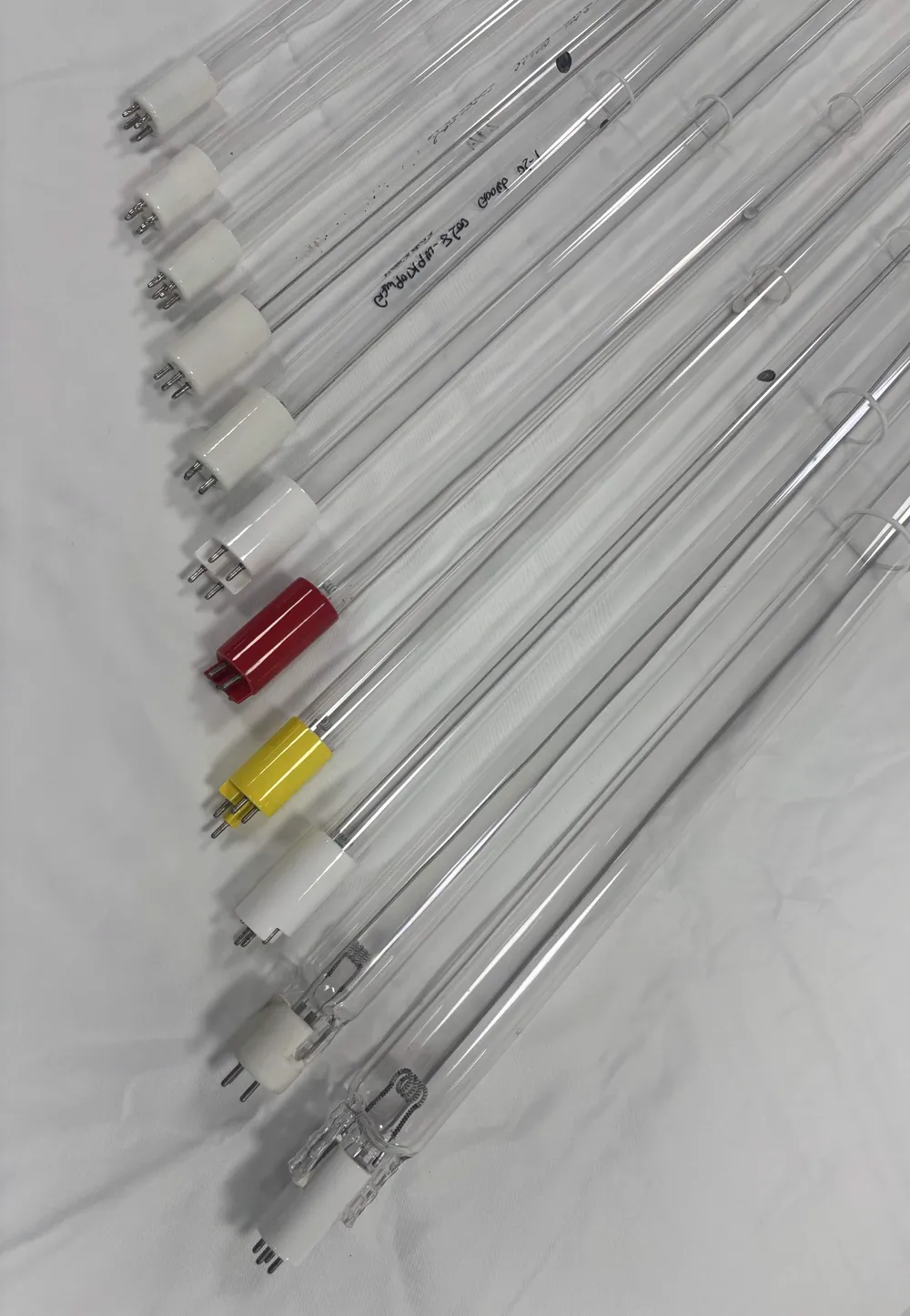

1. Lamp-output decay. Germicidal output declines with operating time. The useful-life rating tells you when a specific lamp is expected to reach its declared end-of-life performance; it is not the time when the tube necessarily goes dark.
2. Unverified replacement lamps. A low-priced tube may fit the socket but lack traceable germicidal-output data, material compatibility or evidence that it delivers the required dose in the original chamber. Ask for UV-C output, wavelength, dimensions, ballast compatibility and performance at end of lamp life — not only lamp wattage or a photograph of a glowing tube.
3. Sleeve fouling and unsuitable water. Scale, iron deposits and biofilm reduce transmission through the quartz sleeve. Low UVT, turbidity and particles reduce the energy reaching microorganisms. A new lamp cannot compensate indefinitely for the wrong water conditions or excessive flow.

The US EPA's Ultraviolet Disinfection Guidance Manual treats flow, lamp status, UV intensity and, for calculated-dose systems, UVT as core operating variables. This is why "the lamp is lit" is not a dose measurement.

KONCHE's current product pages specify the following service-life range:

Use two rules in practice:

• Track operating hours and switching cycles. A run-hour counter is more reliable than a date written on the chamber. Intermittent operation accumulates fewer hours, but frequent starts and stops can shorten lamp and ballast life; follow the limits for the installed model.
• Plan a formal review at least annually for continuous-duty systems. Review hours, intensity trend, alarms, sleeve condition and microbiological results together. Do not automatically extend service just because the lamp still glows.

What does the "70% output" rule really mean?

The 70% figure is useful, but it is often stated too broadly. EPA guidance gives reduced lamp output such as 70% of initial output as an example condition that may be used when validating a reactor for lamp aging and sleeve fouling. That means approximately a 30% decline, not "70% output decay." It is not a universal alarm or mandatory replacement threshold for every UV system.

Use the setpoint, aging factor and rated life documented for the actual reactor and lamp. If a validated system requires a particular intensity setpoint, the measured intensity must remain at or above that setpoint while flow, lamp status and other operating conditions remain inside the validated range. The EPA's UV Treatment Toolkit further explains the roles of UVT, lamp aging, fouling and dose monitoring.

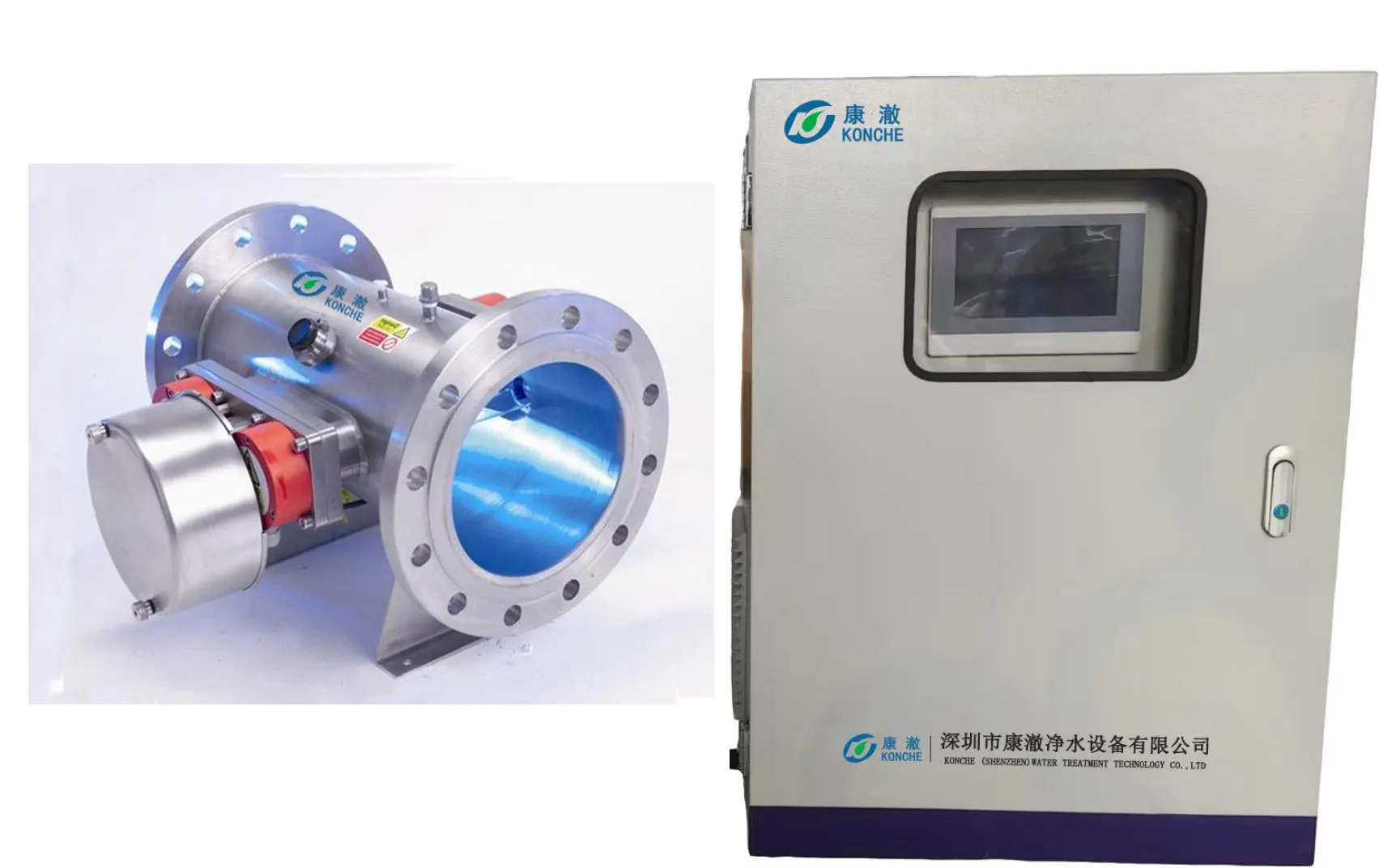

No single check covers the entire system. A clean microbiological sample does not prove lamp dose by itself, and a normal-looking lamp does not prove adequate UV output. Mature plants combine operating data, sensor readings, maintenance inspection and laboratory verification.

UV is commonly evaluated as a final or near-final barrier when treated water must meet a microbiological objective without adding a chemical residual. Typical duties include:

• drinking water, bottled water and water-refilling-station outlets;
• ingredient water in food and beverage production;
• ice making and water supplied to restaurant or hotel kitchens;
• final rinse water for food-contact equipment and containers;
• treated well water or surface water after suitable pretreatment;
• RO product water after storage, or on a hygienic recirculation loop;
• pharmaceutical, electronics and high-purity systems with defined microbial limits;
• processes in which chlorine is undesirable and an immediate inactivation barrier is required.

Sector references across food, beverage and other applications are collected on KONCHE's industry solutions page. The CDC's overview of water-treatment systems notes that UV systems work better with prefiltration and do not remove chemical contaminants. For food-contact water, the US FDA's 2023 Grade "A" Pasteurized Milk Ordinance treats UVT, lamp output and chamber hydraulics/flow as critical factors and requires a validated reduction-equivalent dose for the application.

UV is usually not the core treatment step when water is used only as boiler makeup and then enters a high-temperature boiler. In that duty, hardness, TDS, silica, alkalinity, dissolved oxygen, pH, corrosion and scale control normally drive the process selection. UV may still be justified if the same treated-water system also supplies drinking water, food-contact water, ice, filling or another microbiologically sensitive use.

Placement also matters:

If an open or poorly controlled tank sits after the UV chamber, water can be contaminated again. In that case, place the final UV barrier after the tank or use a properly designed recirculation loop. UV has no disinfectant residual, so it cannot protect a long or unhygienic downstream network by itself; storage design, circulation, sanitation and — where required — a residual disinfectant remain part of the system.

UV dose or fluence is commonly expressed in mJ/cm². It depends on intensity and exposure, while reactor performance also depends on hydraulic behavior. The correct target comes from the organism or microbiological objective, required log reduction, applicable standard and validated reactor performance.

The WHO Guidelines for Drinking-water Quality emphasize that delivered fluence varies with intensity, exposure time and wavelength, and that turbidity and dissolved species can inhibit UV treatment. Procurement specifications should therefore ask for the delivered or validated dose at design flow, design UVT and end-of-lamp-life conditions, not a new-lamp number in isolation.

EPA guidance identifies UVT, particle content, upstream treatment, fouling constituents and algae as factors that can affect reactor performance. The important distinction is that water-quality data and operating data are both needed: UVT, turbidity, hardness and iron come from analysis, while peak flow, temperature and duty cycle come from the process design.

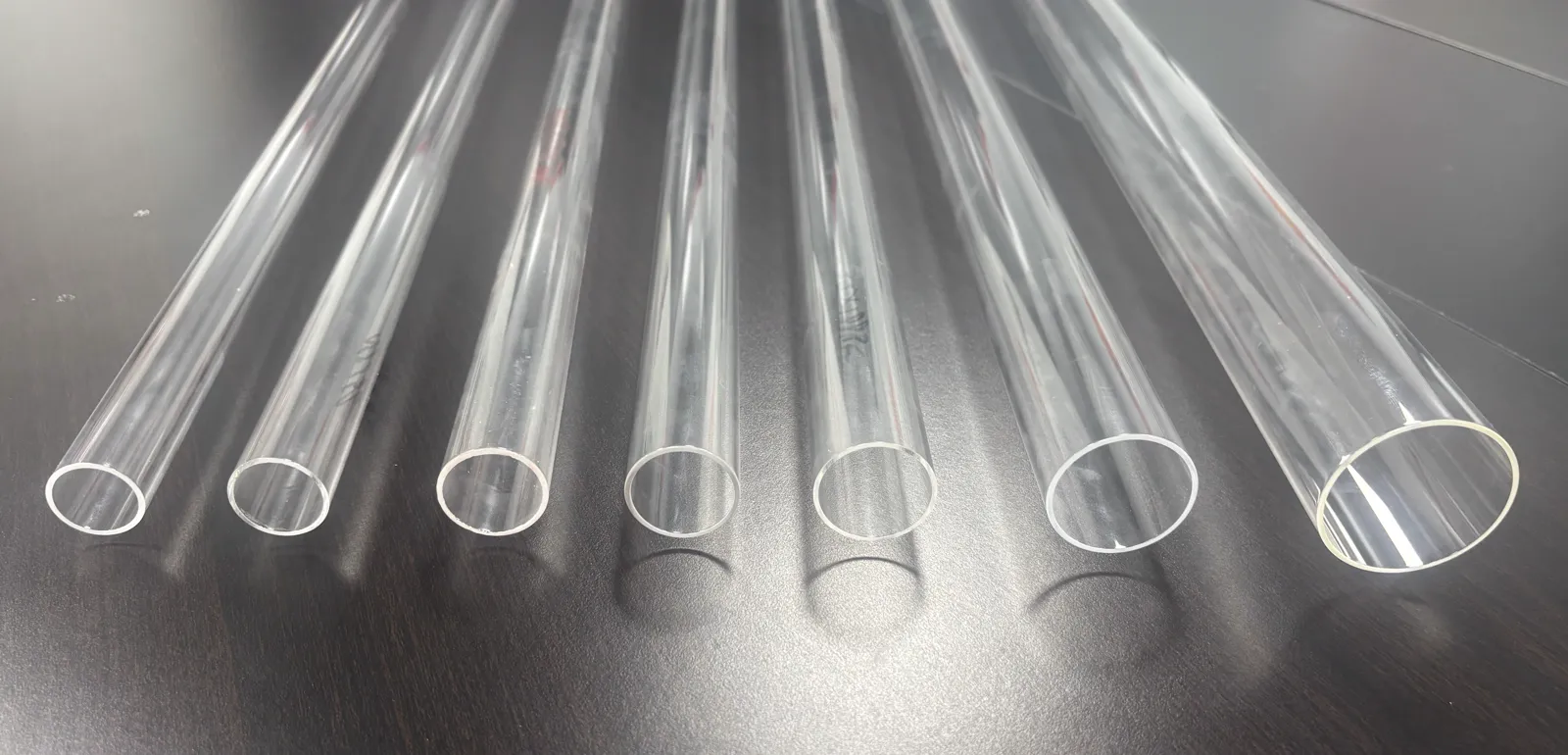

The lamp sits inside a quartz sleeve, and the sleeve is part of the optical path. Scale, biofilm and iron deposits can reduce UV transmission even when the lamp is new.

• Use 3–6 months as the initial inspection/cleaning schedule for KONCHE low-pressure systems, consistent with the current low-pressure UV product maintenance table. Shorten or extend the interval using water quality, intensity trend, runtime and any automatic wiping system.
• Clean according to the equipment manual. A mild-acid method may be appropriate for mineral scale, but cleaning chemistry, concentration, contact time, seals and safety precautions must match the equipment materials and site procedure.
• Replace by condition, not by calendar alone. Cracks, scratches, permanent staining, etching or persistent haze after correct cleaning are replacement triggers. For comparison, VIQUA's manufacturer guidance recommends at least annual cleaning, more frequent cleaning at 3–6 months under high-mineral or organic loading, and sleeve replacement after 2–3 years or when damaged or still cloudy after cleaning.
• Handle cleanly. Use a clean, lint-free cloth and avoid fingerprints or residues on the quartz during reassembly.

Sleeve fouling can make a recently serviced system underperform. Record lamp replacement, sleeve cleaning, sensor checks, alarm tests and the observed intensity before and after service. A sleeve that remains cloudy after the approved cleaning procedure should not go back into service.

The lowest lamp price is not necessarily the lowest annual cost. A compatible germicidal lamp with traceable output data may cost more than a generic tube, but an unverified substitute may fail early, trigger alarms or fail to deliver the chamber's specified performance. A failed bacteria test, rejected batch or contaminated filling line can cost far more than the price difference between lamps.

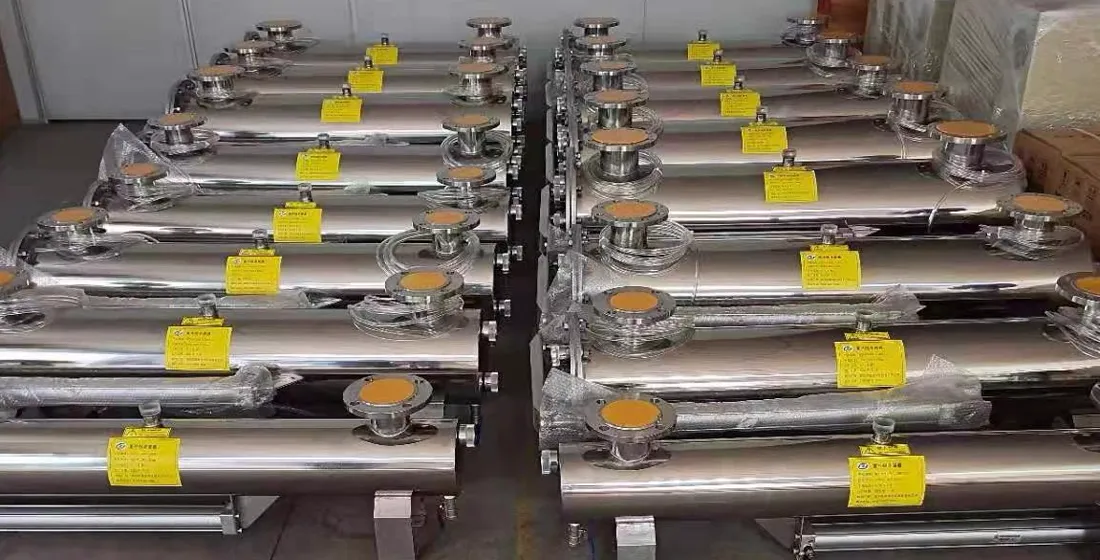

KONCHE has designed and manufactured water-treatment and UV-disinfection equipment in China for more than 20 years. Relevant equipment has been inspected by nationally accredited testing organizations, and supporting test reports can be provided when customers require them. Lamps and systems are selected against project flow, water quality and dose requirements, while lamps, quartz sleeves and related spare parts are supplied for long-term maintenance.

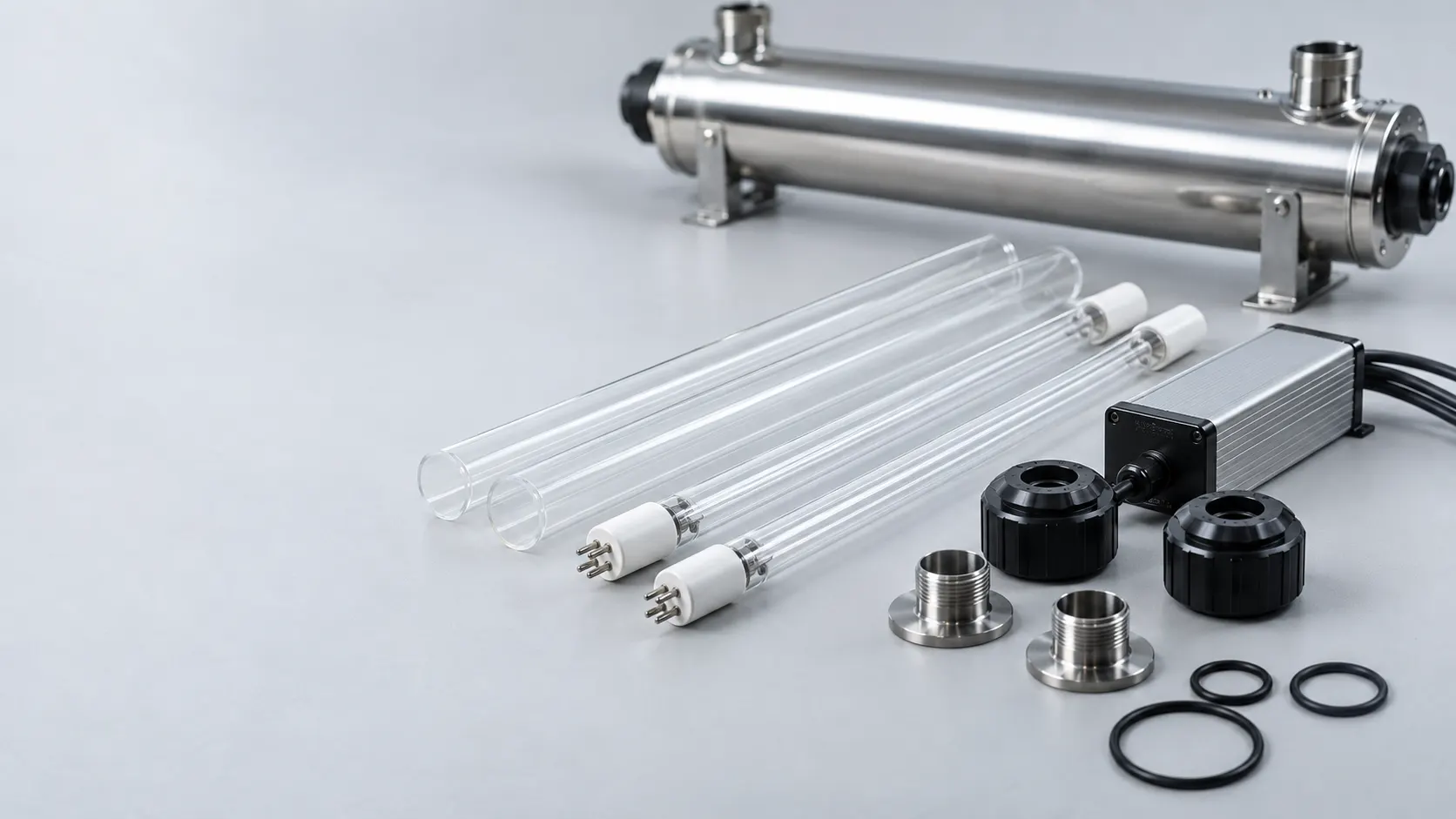

See the UV water sterilizer range, including low-pressure and medium-pressure systems, the TOC UV degradation system for ultrapure-water loops, and UV disinfection consumables for lamps, sleeves and spares.

Start with the installed reactor and its documentation. Use this identification sheet for a replacement-lamp or sleeve inquiry; a photograph and matching wattage alone are insufficient to confirm compatibility.

Take identification photos during approved maintenance with power isolated and the reactor depressurized, following the installed model’s procedure. Do not energize an exposed UV lamp for a photo. Replacement suitability needs model-specific review of electrical, mechanical and UV-output requirements; physical fit does not establish an approved cross-brand substitute.

• Exact lamp model, dimensions, base, wavelength and ballast compatibility.
• UV-C output specification — not only electrical wattage — and declared service life.
• The reactor's design or validated dose at rated flow, design UVT and end-of-lamp-life conditions.
• Intensity sensor/setpoint, alarm code and reset procedure for the installed controller.
• Quartz-sleeve material, dimensions, seals and approved cleaning method.
• Availability and lead time for lamps, sleeves, ballasts, sensors and seals.
• Test reports and the conditions behind any inactivation claim.
• Whether changing lamp brand or specification affects the original reactor documentation, validation or warranty.

Send the identification sheet and photos through a replacement-parts inquiry, with the quantity required, installation country, alarm code and service history. Review the UV disinfection consumables range for the component scope. KONCHE can review the supplied information before confirming the proposed part and any further documentation needed.

If you are also specifying or retrofitting the reactor, use the UV sizing guide to supply peak flow, UVT where available, water analysis and temperature. For an RO product-water tank or recirculating loop, the storage-tank bacteria-regrowth guide helps distinguish a lamp-service issue from downstream contamination. The recommendation should state the design basis and dose, not only lamp wattage.
