254 nm In-Line Disinfection for Municipal & Process Water
4 Connection Forms · 2–600 m³/h · ≥99% Kill Rate
KCF closed-vessel sterilizers disinfect water inside a polished 304/316L pressure reactor. Closed-vessel UV suits small-to-medium flows and any duty where pressure must be maintained and open channels are impractical; lamps can be mounted parallel or perpendicular to the flow — parallel layouts reduce head loss, perpendicular layouts raise turbulence and disinfection efficiency.
Five product forms cover 2–600 m³/h: KCF-UV/A threaded monolithic (3–30 m³/h), KCF-UV/B flanged split, KCF-UV/C split with automatic wiping, and KCF-UV/D built-in sight-glass reactors (2–50 m³/h) listed in their own section below.

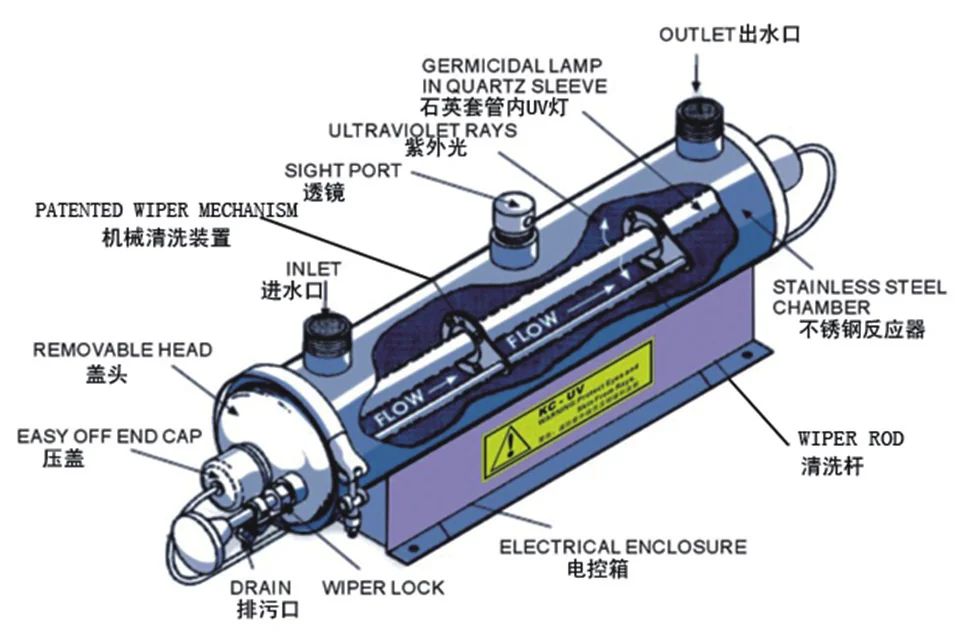

Water enters the reactor and flows around the germicidal lamp held in a high-transmission quartz sleeve. 254 nm UV damages microbial DNA/RNA within seconds. The basic configuration: UV lamp, high-transmission quartz sleeve, electronic ballast, 304/316L stainless reactor, and a control box with hour-runner and alarm indication; sight port and manual or automatic wiping are optional.
| Advantage | Detail |
|---|---|
| High efficiency | ≥99% inactivation within the rated flow, according to water quality |
| Stable quality | 24-hour continuous operation; 254 nm output utilization above 95% |
| Lamp life | 8,000–10,000 operating hours |
| Water unchanged | No change to color, taste or odor; no disinfection by-products |
| Low running cost | Power and lamps only; compact body, silent operation |
The compact monolithic form integrates reactor and control base — threaded connection for small-to-medium flows, 3–30 m³/h. Basic configuration: UV lamp, electronic ballast, 304/316L reactor, control box and high-transmission quartz sleeve.
| Model | Flow (m³/h) | Lamp power | Chamber L×W×H (mm) | Connection |
|---|---|---|---|---|
| KCF-80W | 4.5 | 40 W × 2 | 920 × 114 × 280 | DN32 (1¼") |
| KCF-120W | 8 | 40 W × 3 | 920 × 159 × 320 | DN40 (1½") |
| KCF-160W | 12 | 40 W × 4 | 920 × 220 × 380 | DN50 (2") |
| KCF-200W | 15 | 40 W × 5 | 920 × 220 × 380 | DN50 (2") |
Standard listed models cover 4.5–15 m³/h; the full 3–30 m³/h band is configured to order. Values are reference ranges for the stated conditions, not a project guarantee.
The flanged split form for larger flows, with the control box mounted separately and optional manual or automatic wiping. Basic configuration: UV lamp, electronic ballast, 304/316L reactor, control box and high-transmission quartz sleeve. 20–600 m³/h.
| Model | Flow (m³/h) | Lamp power | Chamber L×W×H (mm) | Connection |
|---|---|---|---|---|
| KCF-240W | 20 | 120 W × 2 | 1320 × 220 × 450 | DN65 (2½") |
| KCF-720W | 60 | 120 W × 6 | 1320 × 300 × 580 | DN125 (5") |
| KCF-1200W | 100 | 120 W × 10 | 1320 × 400 × 700 | DN150 (6") |
| KCF-2560W | 200 | 320 W × 8 | 1700 × 400 × 700 | DN225 (8") |
| KCF-4800W | 400 | 320 W × 15 | 1700 × 500 × 900 | DN250 (10") |
| KCF-7200W | 600 | 320 W × 22 | 1700 × 600 × 1060 | DN350 (14") |
Values are reference ranges for the stated conditions, not a project guarantee.
The split form with automatic wiping keeps quartz sleeves clean online — the right choice for duty where fouling is expected. Basic configuration: UV lamp, high-transmission quartz sleeve, electronic ballast, 304/316L reactor, control box (hour-runner, alarm lamp) and automatic cleaning. 20–600 m³/h.
| Model | Flow (m³/h) | Lamp power | Chamber L×W×H (mm) | Connection |
|---|---|---|---|---|
| KCF-240W | 20 | 120 W × 2 | 1320 × 220 × 450 | DN65 (2½") |
| KCF-720W | 60 | 120 W × 6 | 1320 × 300 × 580 | DN125 (5") |
| KCF-1200W | 100 | 120 W × 10 | 1320 × 400 × 700 | DN150 (6") |
| KCF-2560W | 200 | 320 W × 8 | 1700 × 400 × 700 | DN225 (8") |
| KCF-4800W | 400 | 320 W × 15 | 1700 × 500 × 900 | DN250 (10") |
| KCF-7200W | 600 | 320 W × 22 | 1700 × 600 × 1060 | DN350 (14") |
Values are reference ranges for the stated conditions, not a project guarantee.
The built-in form integrates the reactor into a compact stainless body with a sight glass for lamp inspection — single-end four-pin lamps, 2–50 m³/h, available with or without the control box.
| Model | Power | Flow (m³/h) | Lamp | Sight glass | Dimensions (mm) | Connection |
|---|---|---|---|---|---|---|
| KCF-UV40W | 40 W | 2 | 40 W × 1 | Yes | 920 × 89 × 200 | DN25 |
| KCF-UV80W | 80 W | 4.6 | 40 W × 2 | Yes | 920 × 114 × 200 | DN32 |
| KCF-UV120W | 120 W | 8 | 40 W × 3 | Yes | 920 × 180 × 220 | DN40 |
| KCF-UV240W | 240 W | 20 | 120 W × 2 | Yes | 1350 × 220 × 480 | DN65 |
| KCF-UV360W | 360 W | 30 | 120 W × 3 | Yes | 1350 × 280 × 480 | DN80 |
| KCF-UV480W | 480 W | 40 | 120 W × 4 | Yes | 1350 × 280 × 480 | DN100 |
| KCF-UV600W | 600 W | 50 | 120 W × 5 | Yes | 1350 × 280 × 480 | DN125 |
Single-end four-pin lamps. Values are reference ranges for the stated conditions, not a project guarantee.
| Water point | Duty |
|---|---|
| Municipal water | Plant and network disinfection |
| Surface water | Well, river and lake sources |
| Recirculating cooling water | Loop disinfection |
| Industrial process water | Electronics, pharmaceutical, food and beverage |
| Marine and vessel water | On-board potable and process water |
| Swimming pools | Circulating water disinfection |
| Seawater desalination | Post-treatment disinfection |
Small flows suit the threaded monolithic KCF-UV/A; larger or fouling-prone duties take the flanged KCF-UV/B or the auto-wiping KCF-UV/C.
No. UV is chemical-free and leaves no residue, taste or color.
Send your water analysis, target capacity and application. KONCHE will help select and configure the suitable system.
