UV Water Treatment for Food and Beverage Plants: Applications, Selection and Cost

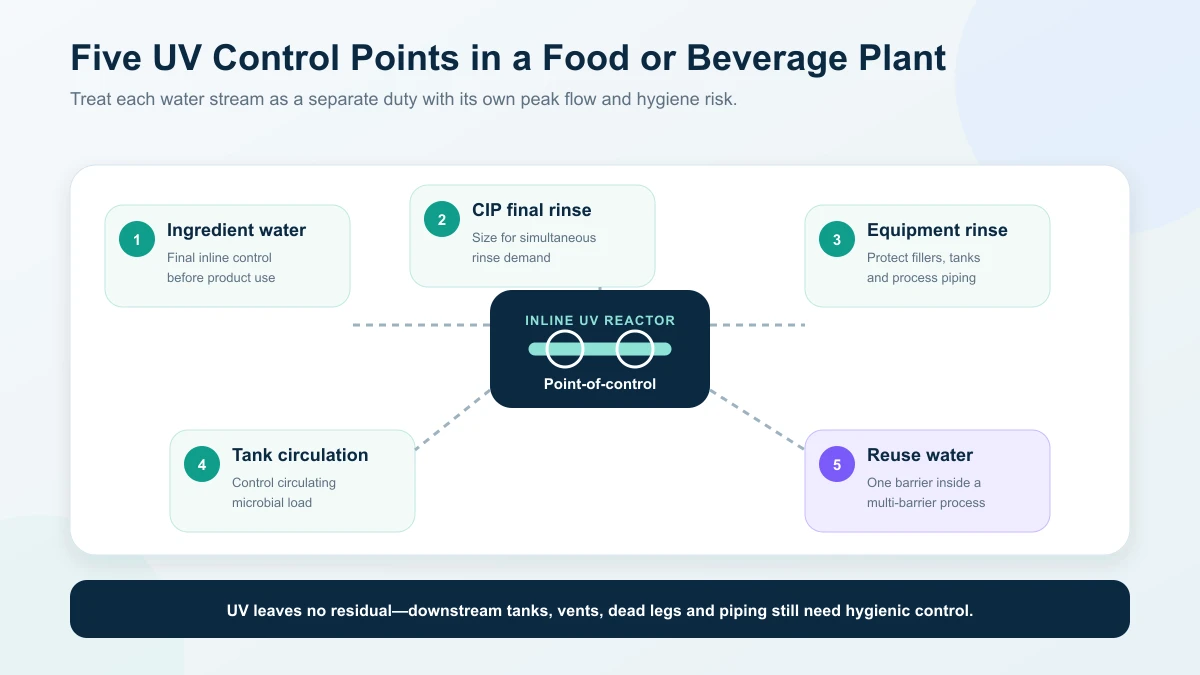

Where is UV used in a food or beverage plant?

Different water streams have different risks. Treating “plant water” as one duty often leads to the wrong reactor size or location.

UV in this guide applies to water treatment only. Surface and air UV systems use different equipment and validation methods.

Where should the reactor be installed?

Install UV after the filtration or membrane stages needed to achieve the required UVT and low suspended-solids level. Position the reactor as close as practical to the protected use point or circulation loop. Every downstream tank, dead leg and length of pipe creates an opportunity for recontamination because UV leaves no residual disinfectant.

The installation must provide:

• enough straight pipe and suitable connections for the selected reactor;
• access to remove lamps and sleeves without dismantling unrelated equipment;
• drainage and isolation for maintenance;
• flow measurement or a reliable design-flow limit;
• lamp status, run-hour and alarm connections;
• hygienic materials and surface finish where the water specification requires them.

How do overlapping CIP rinses change the design flow?

Build a demand schedule for the users connected to the same UV header. The following calculation assumes two CIP final-rinse circuits and one ingredient-water line can run together. These are illustrative process demands, not KONCHE reactor ratings or a performance claim.

Confirm these inputs with pump curves, flow measurements and the production schedule; allow for any additional users or flushing modes. Daily consumption divided by operating hours does not establish the instantaneous peak. The UV sizing guide explains how to combine this flow with UVT, lamp condition and the required performance.

Does UV disinfection work?

UV-C damages microbial DNA and RNA so organisms cannot replicate. The correct engineering term is microbial inactivation, not absolute sterilization of the entire water system.

Performance depends on four conditions:

1. the reactor has been selected for the required flow and target performance;
2. the water has sufficient UVT and low enough particle loading;
3. lamps and sleeves remain within their operating and maintenance limits;
4. the reactor operates within the conditions used for its performance claim.

Ask which organism or water specification, UV dose, UVT, flow and lamp condition support the proposed performance, and how it will be verified at the site. A percentage without those conditions does not establish suitability for an ingredient or final-rinse line.

Particles, turbidity and deposits can shield microorganisms or absorb light. UV therefore follows suitable pretreatment; it does not replace it. Post-commissioning microbial testing and operating-data review are needed to confirm that the installed system meets the plant’s water specification.

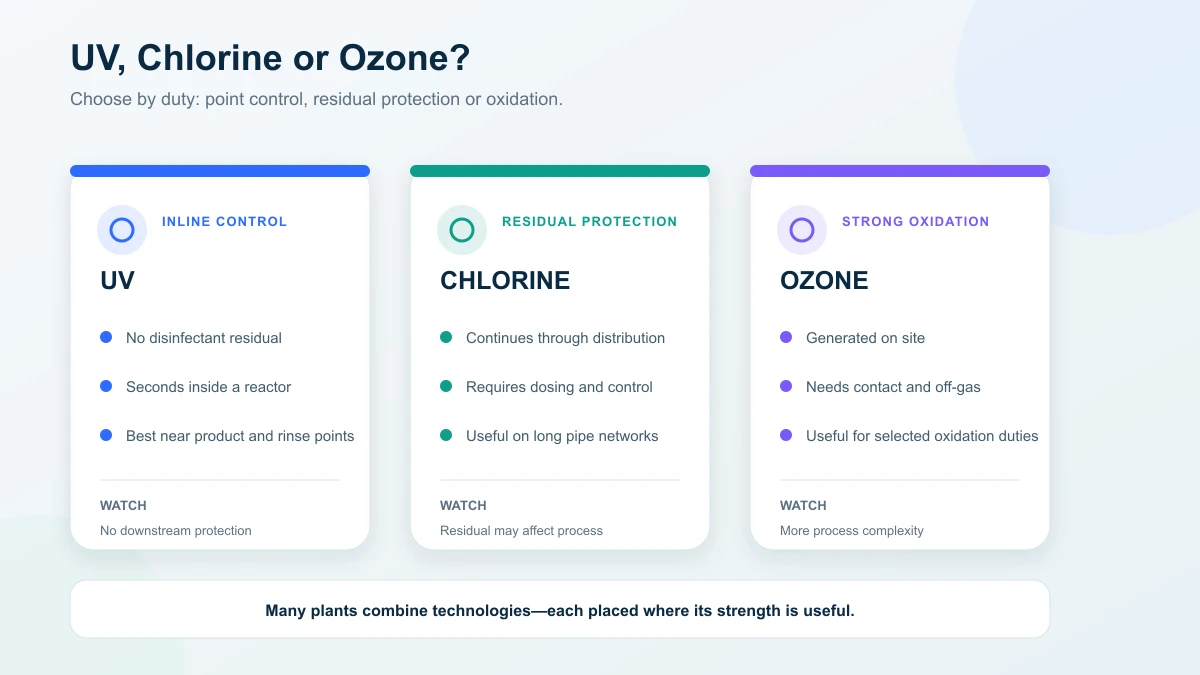

UV, chlorine or ozone: which fits the duty?

These technologies are often complementary rather than interchangeable.

Choose UV where a disinfectant residual is undesirable and the water can be kept within the reactor’s UVT and flow envelope. Choose or retain a residual disinfectant where long distribution lines need continuing protection. Many plants use both at different points. The UV versus ozone guide develops the comparison for oxidation, residuals and system complexity.

Low-pressure or medium-pressure UV?

Lamp pressure is not decided by flow alone. The supplier should consider flow, UVT, target dose, temperature, footprint, lamp count, energy use, turndown and maintenance access.

KONCHE’s low-pressure UV sterilizer and medium-pressure UV system pages provide current product ranges. Published capacities are selection references only; final capacity depends on UVT, target performance and reactor configuration.

What water-quality data is needed?

At minimum, provide:

• UVT at the relevant wavelength, preferably at the worst seasonal condition;
• turbidity and suspended solids;
• iron, manganese, hardness, alkalinity and pH, which affect sleeve fouling;
• water temperature range;
• normal and peak flow;
• microbial target or water-quality specification;
• upstream treatment and downstream storage details.

The US EPA UV Treatment Toolkit describes design and monitoring considerations including UVT, flow, lamp aging and fouling. These are useful engineering references; its US drinking-water context does not establish food-process compliance or approval for another market.

What should be included in a supplier quotation?

A proposal that lists only flow and lamp wattage is not enough to compare performance or lifecycle cost.

How much does a food-plant UV system cost?

Exact prices depend on the selected reactor, materials, controls and site work. Compare the complete lifecycle cost:

LP systems usually offer lower energy use for suitable small and medium duties. MP systems use more power but may reduce lamp count and footprint at larger duties. The least expensive purchase is not necessarily the lowest-cost solution if it cannot meet the required performance at peak flow and end of lamp life.

Ask suppliers to provide:

• connected and typical operating power;
• expected lamp life under the proposed duty;
• lamp and sleeve replacement prices;
• recommended cleaning and inspection frequency;
• critical-spares list and delivery time;
• expected downtime for routine service.

KONCHE’s UV disinfection consumables page lists the main replacement categories.

Installation, operation and food-safety documentation

UV supports the plant’s water and hygiene program; it does not replace local food-safety obligations, HACCP controls, sanitation procedures or customer-audit requirements.

A practical operating program should include:

• approved design conditions and alarm limits;
• run-hour, intensity and flow records;
• routine sleeve inspection based on actual fouling;
• lamp replacement based on rated life and monitored output;
• microbiological sampling at defined upstream and downstream points;
• documented response to low intensity, excessive flow or lamp failure;
• controlled bypass use;
• spare lamps, sleeves and seals matched to the installed model.

Where should a food plant sample, and what should happen on an alarm?

Agree the sampling and response plan with the plant's quality and process teams before commissioning. Reactor-outlet samples and point-of-use samples answer different questions: a downstream tank or loop can reintroduce contamination after UV.

Do not use visible lamp glow as proof of performance. The lamp replacement and monitoring guide explains the service evidence to keep. For downstream contamination, see the storage-tank regrowth guide before moving the reactor or increasing lamp power.

What information should you send with an RFQ?

Send every supplier the same data package:

1. application point and intended water use;
2. normal and maximum instantaneous flow;
3. UVT and full water analysis at the worst expected condition;
4. water-temperature range and operating pressure;
5. target microorganism, dose or water-quality specification;
6. upstream treatment and downstream tank/loop arrangement;
7. pipe size, installation orientation, electrical supply and available space;
8. monitoring, documentation and acceptance-test requirements;
9. required materials, surface finish and sanitary connections;
10. project location and commissioning schedule.

With these inputs, a supplier can propose a reactor and document its performance basis. Keep the application, sample points, alarm response and acceptance method in the same RFQ package so engineering and quality teams can review one specification.

Frequently asked questions

Can UV replace CIP or chemical sanitation?

No. UV controls microorganisms in water passing through the reactor. It does not remove product soil, clean equipment surfaces or sanitize dead legs. It is one part of the plant hygiene program.

Can UV replace chlorine throughout the plant?

Not automatically. UV leaves no residual, so it is well suited to product-adjacent control points. Long distribution systems may still need a residual disinfectant or another strategy to control regrowth.

How do I know whether the system is large enough?

The proposal should show that the reactor meets the required performance at peak flow, worst-case UVT and end-of-lamp-life conditions. Flow, UV intensity and alarms should then keep operation inside that design envelope.

How often should lamps and sleeves be serviced?

Follow the installed lamp’s rated life and the observed intensity and fouling trend. Fixed intervals are useful for planning, but actual water chemistry, operating hours, starts and temperature affect service requirements.

Request a food and beverage UV proposal

Send the application point, peak flow, UVT or water report, temperature, required performance and installation details. KONCHE can then compare LP and MP configurations and define the monitoring and service package: request a quotation.

Technical note: Product performance and service intervals depend on the stated water quality and operating conditions. Food producers must confirm the standards and regulatory requirements applicable to their market, product and site.
