UV Water Treatment Systems: Types, Applications and Cost Guide

How does UV water treatment work?

UV treatment uses light energy inside a flow-through reactor.

• 254 nm UV is absorbed by microbial nucleic acids and prevents organisms from replicating. This is microbial inactivation.
• 185 nm UV is absorbed strongly by water and generates reactive species that oxidize trace organic compounds. This is used for TOC reduction in high-purity and ultrapure-water systems.

No disinfectant chemical is added by the UV process, but performance is local to the reactor. Because there is no residual, downstream tanks and piping still require suitable hygienic design and operating control.

Three conditions determine whether a UV system performs:

1. water passes through the reactor within the stated flow range;
2. the water has sufficient UV transmittance (UVT);
3. lamps, sleeves and sensors remain within their operating and maintenance limits.

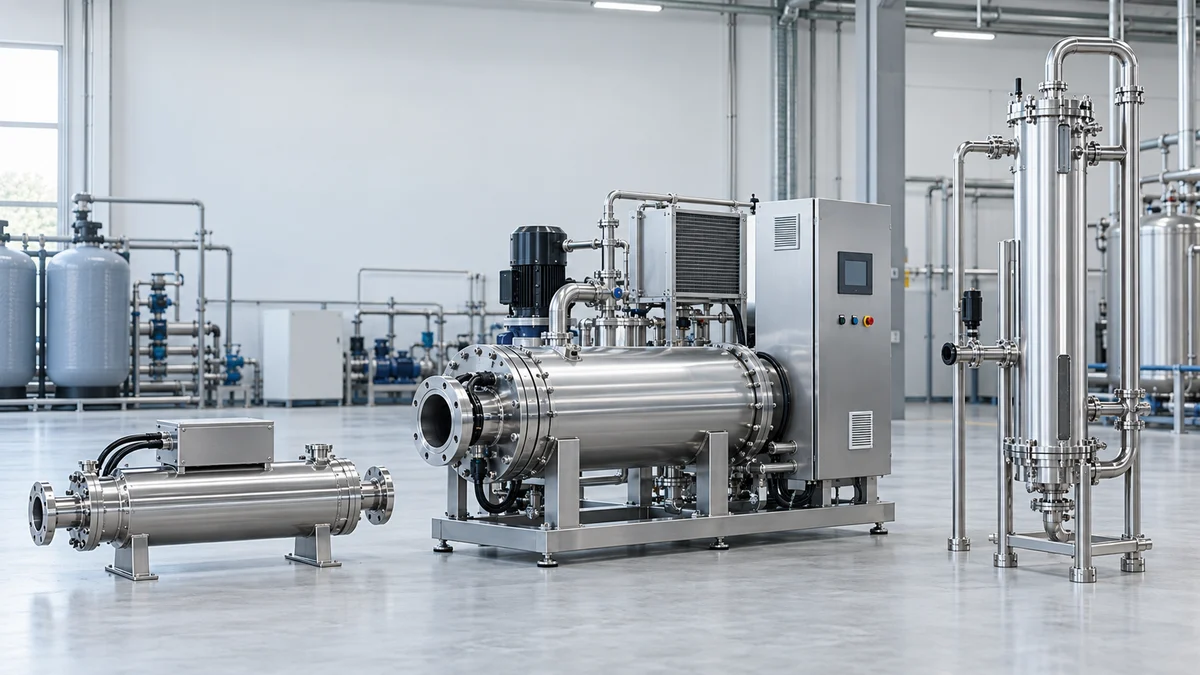

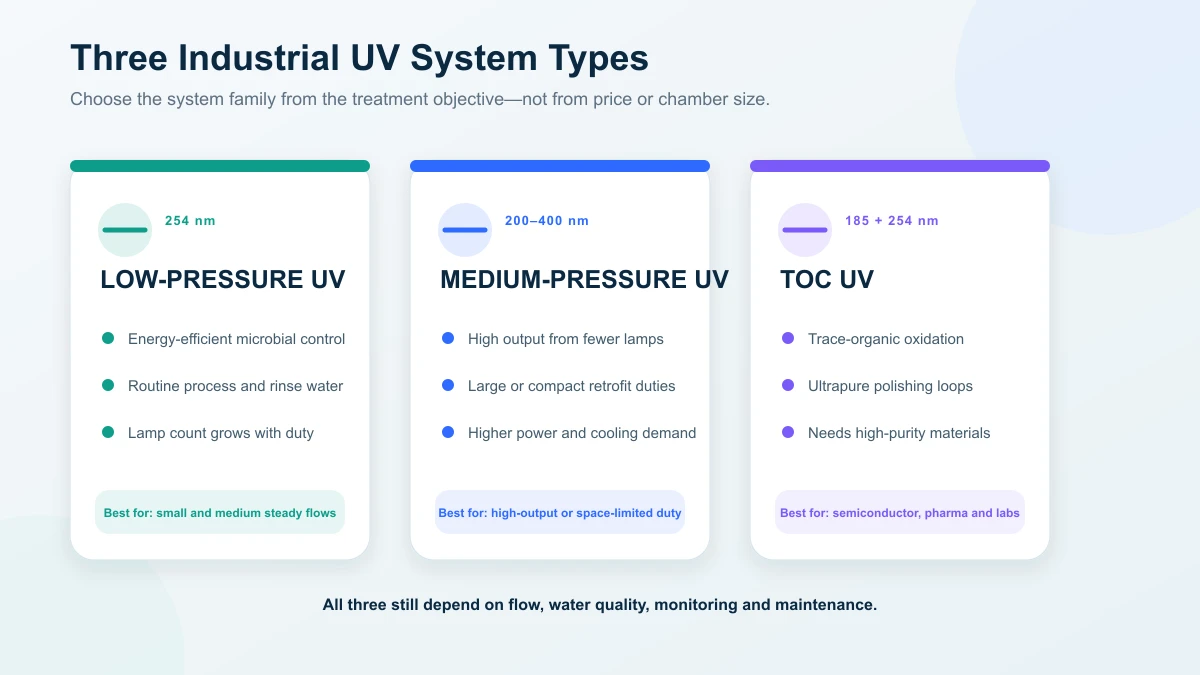

Types of industrial UV water-treatment systems

The current KONCHE ranges are described on the low-pressure UV, medium-pressure UV and TOC UV degradation product pages.

Low-pressure UV

LP UV is usually the first option for routine disinfection when the flow, UVT and installation conditions fit the available model range. It offers high electrical efficiency and is widely used on small and medium process-water duties.

As duty grows, the design may require more lamps or parallel reactors. Buyers should compare total lamp count, connected power, maintenance access and redundancy—not just the price of one chamber.

Medium-pressure UV

MP systems use high-output broad-spectrum lamps, commonly in the kilowatt range. They can deliver large output from fewer lamps and a compact reactor, which may suit high-flow or space-constrained installations.

The trade-offs are higher power, more demanding lamp and cooling arrangements, and application-specific monitoring. MP is not automatically better at every high flow; it should be compared with an LP bank using the same UVT, performance and operating assumptions. For pool-specific residual, chloramine and validation questions, see the commercial-pool medium-pressure UV guide.

185 nm TOC UV

TOC reactors are not ordinary disinfection units with a different label. They use lamp envelopes, sleeves and wetted materials selected for high-purity water and 185 nm transmission.

They are installed late in an ultrapure-water train, commonly after RO and EDI and before or around final polishing, depending on the loop design. Selection depends on feed TOC, target TOC, water matrix, flow, loop turnover and downstream polishing. See the detailed TOC UV selection guide.

254 nm versus 185 nm

Choose the wavelength from the water problem. A disinfection requirement does not automatically need 185 nm, and a TOC requirement cannot be solved by assuming that any 254 nm sterilizer will oxidize trace organics.

Where does UV fit in a treatment train?

UV is generally a late-stage, point-of-control process.

UV should not be installed as a substitute for upstream removal. If turbidity, iron, color or suspended solids prevent light transmission, correct those conditions first.

For food applications, see the dedicated food and beverage UV guide.

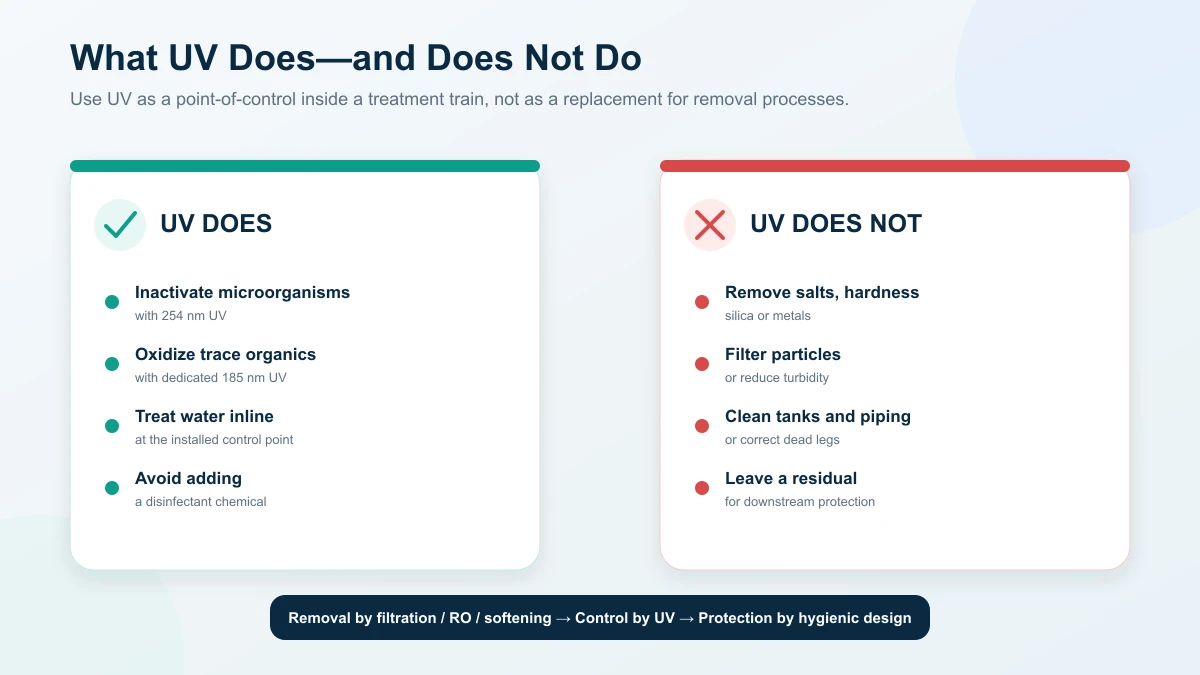

What UV does not do

UV does not:

• remove dissolved salts, hardness or silica;
• remove suspended solids or turbidity;
• filter dead microorganisms or particles from water;
• clean tanks, piping or product-contact surfaces;
• provide a disinfectant residual in downstream distribution;
• compensate for dead legs, poor tank vents or an uncontrolled bypass.

These boundaries help buyers combine technologies correctly. RO, softening and filtration perform removal; UV provides microbial or organic control at the selected point.

UV versus chlorine and RO

UV versus chlorine

Chlorine and similar disinfectants provide residual protection through distribution. UV acts inside the reactor and leaves no residual. UV is useful where added chemistry is undesirable; chlorine is useful where continuing distribution protection is required. Many plants use both in different parts of the same system.

UV versus reverse osmosis

UV and RO are not substitutes. RO removes dissolved salts, particles and much of the organic load. UV inactivates microorganisms, and 185 nm systems oxidize residual TOC. High-purity systems commonly use them in sequence.

How is a UV system selected?

For disinfection, start with:

• normal and peak flow;
• worst-case UVT and full water analysis;
• required dose, organism or performance specification;
• water-temperature and pressure range;
• upstream treatment and downstream storage;
• installation space, connections and electrical supply;
• monitoring, validation and redundancy requirements.

For TOC duty, replace the disinfection target with feed TOC, outlet TOC, organic-water matrix, loop turnover and polishing requirements.

The detailed method is covered in How to Size a UV Water Treatment System.

How much does an industrial UV system cost?

Published prices rarely describe a complete project. Compare total lifecycle cost:

LP systems often have the lowest energy cost for suitable routine duties. MP systems may reduce lamp count and footprint at larger duties. TOC systems add high-purity materials, specialized lamps and TOC monitoring. The lowest purchase price is not the lowest lifecycle cost if the unit cannot meet the required performance or is difficult to service.

How can buyers estimate annual UV electricity cost?

Use the proposed package electrical input, including ballasts and controls, rather than lamp wattage alone. For each operating mode, calculate annual electricity (kWh/year) = package input (kW) × hours in that mode per year, then add the modes and multiply by the local electricity tariff.

Add separate pumping or cooling loads if excluded from the package input. This template estimates electricity only; it excludes equipment price, installation, replacement parts and maintenance labor.

Maintenance and monitoring

Lamp aging, sleeve fouling and sensor-window fouling reduce delivered UV. The US EPA UV Treatment Toolkit treats these as design and operating considerations, not minor maintenance details. It is a US drinking-water engineering reference; the project authority determines the applicable requirements.

A practical program includes:

• lamp-status and run-hour logging;
• UV-intensity or validated-dose monitoring where required;
• flow monitoring and high-flow alarm;
• sleeve inspection and cleaning based on observed fouling;
• sensor verification and calibration;
• seal and connection inspection;
• planned lamp replacement based on rated life and output trend;
• critical spares selected by exact reactor model.

Use the installed equipment documentation, lamp type, operating conditions and monitored output for the actual replacement plan. The UV lamp replacement guide explains how to assess lamp age, low-intensity alarms and sleeve fouling. Match replacement lamps, sleeves and related parts using the UV consumables page and the exact reactor model.

How should buyers compare suppliers?

Require every proposal to state:

1. design flow, UVT, temperature and pressure;
2. performance target and the conditions behind it;
3. lamp-aging and sleeve-fouling allowance;
4. reactor materials, lamp type and component models;
5. monitoring, alarm and interlock functions;
6. supply boundary and installation exclusions;
7. commissioning and acceptance-test method;
8. connected power and estimated operating cost;
9. consumable prices and lead times;
10. warranty, training and technical-response arrangements.

If two suppliers use different UVT, peak-flow or lamp-life assumptions, their prices are not directly comparable.

For application evidence, compare the hotel-pool medium-pressure UV supply record with the 5,000 TPD wastewater UV cleaning and monitoring case. These records illustrate different installation and operating duties; neither establishes TOC-reduction performance or a transferable flow rating for another water source.

Frequently asked questions

Does UV make water safe to drink?

UV can provide microbial inactivation when correctly selected and operated, but it does not remove chemicals, salts, metals or particles. Potability depends on the complete treatment system and the applicable drinking-water standard.

Does UV leave anything in the water?

UV disinfection adds no disinfectant chemical and leaves no protective residual. That is an advantage at some use points and a limitation in long distribution systems.

Can UV replace a filter or RO system?

No. Filters and membranes remove contaminants. UV inactivates microorganisms or, at 185 nm, oxidizes trace organics.

Which is better: low-pressure or medium-pressure UV?

Neither is universally better. LP is often more energy-efficient; MP can deliver high output with fewer lamps and a smaller footprint. Compare both against the same water quality, performance and lifecycle-cost basis.

What information is needed for a quotation?

At minimum: application, peak flow, UVT or water report, target performance, temperature, pressure, installation details and monitoring requirements.

Talk to KONCHE about a UV system

KONCHE supplies LP, MP and TOC UV systems for industrial and commercial water treatment. Send your water report, peak flow, target and site conditions for an engineered selection: request a quotation.

Technical note: Published capacities, inactivation claims and lamp-life figures apply only under the conditions stated by the relevant manufacturer. Final performance must be tied to the project water quality, operating envelope and acceptance method.
